HayBuster 2100 Balebuster

Double tap to zoom

Bale Processors 2100 Balebuster
Overview:

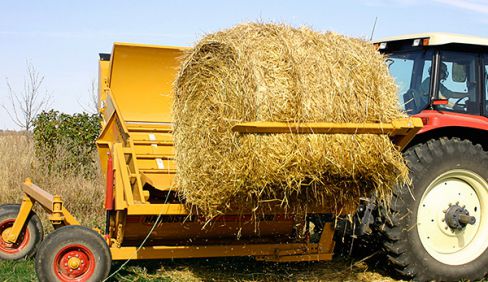

The 2100 Balebuster is the original bale processor from Haybuster. It remains very popular due to its simplicity and versatility. Two-point mounted on the tractor with rear caster wheels to support the load of the machine and the bale. Being semi-mounted to the tractor, the 2100 is easy to maneuver. Just back into a bale, hit the hydraulics to rotate the bale into the chamber and you are good to go. Go feed, go spread mulch and go get the JOB done with the Model 2100! - Less
The 2100 Balebuster is the original bale processor from Haybuster. It remains very popular due to its simplicity and versatility. Two-point mounted on the tractor with rear caster wheels to support the load of the machine and the bale. Being semi-mounted to the tractor, the 2100 is easy to maneuver. Just back into a ba... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
• Tractor Semi Mounted, for easy maneuvering & positioning of straw.
• Rear caster wheels to support weight of machine and bale.
• Heavy-duty loader for easy bale loading. Just back into bale, hydraulically roll shredder frame which loads the bale.
• Heavy-duty chain conveyor with more durable chain and heavier drive shafts.
• 1000 RPM drive that can throw straw up to 40 feet.
• Easily adjustable deflector for feeding or bedding.
Optional Features:
- Stripper channel kits
- Category II/III Quick-Tach Hitch
- Wide Deflector Belt
Specifications
WEIGHT | - |
Total | 3,700 lbs. (1,679 kg) |
SHIPPING DIMENSIONS | - |
Width | 8 ft. 5 in. (2.6 m) loader & deflector folded. |
Length | 12 ft. 9 in. (4.01 m) |
Length | 8 ft. 5 in. (2.6 m) caster wheels removed. |
Height | 6 ft. 5 in. (1.96 m) loader folded. |
TRANSPORT DIMENSIONS | - |
Width | 10 ft. 8 in. (3.25 m) |
Length | 12 ft. 9 in. (4.01 m) |
Height | 6 ft. 5 in. (1.96 m) loader folded |
WORKING DIMENSIONS (WITH BALE) | - |
Width | 13 ft. (3.96 m) |
Length | 12 ft. 9 in. (4.01 m) |
Height | 9 ft. 8-3/4 in. (3.05 m) |
CHASSIS FEATURES | - |
Hitch | Semi-Mounted, attaches to lower Lift Links of Tractor's 3-PT Hitch< |
Tires | (2) 9.5 x 14 - 8-Ply |
Wheels | (2) 6 x 14 - 5 Bolt Drop Center |
BALE CONVEYOR | - |
Type | 3 Roller Chains with Bolt-on Cross Slats |
Drive | Hydraulic Motor with Hydraulic Flow Control |
BALE SHREDDER CHAMBER | - |
Max. Bale Size | 5-1/2 ft. long x 6-1/2 ft. dia. (1.68 m x 1.98 m) |
Max. Bale Weight | 1,500 lbs. (682 kg) |
Rotor Length | 78 in. (1.83 m) |
Rotor Diameter (Flails extended) | 25-1/2 ft. (64.77 cm) |
Rotor Bearing | Ball, 1-3/4 in. (4.44 cm) |
Number of Flails | 30 |
Flail Type | Heavy Duty Flails, 7/16 in. (11.11 mm) Thick, 3 lbs. (1.36 kg), Heat Treated Spring Steel, Swinging |
Number of Stripper Plates | 1 |
Number of Slug Bars | 5 |
Deflector Shield | 6 Adjustment Positions through 120 degree range |
Max. Horizontal Spread | Straw up to 50 ft. |
OPERATOR CONTROLS | - |
Loader | 1 set of Tractor Hydraulic Outlets |
Bale Conveyor | 1 set of Tractor Hydraulic Outlets |
Bale Conveyor Speed | Adjustable Hydraulic Flow Control Valve |
Slug Bar | Shim adjustable |
Deflector Shield Position | Hand Lever with Position Settings |
REQUIREMENTS FOR OPERATION TRACTOR | - |
PTO Horsepower required | 65 to 155 |
hree Point Hitch | CAT II / III |
Min. Hitch Lift Capacity | 4,000 lbs. (1,818.18 kg) |
PTO Type | 1000 RPM, 1-3/8 in dia Shaft with 21 Splines |
Min. Hydraulic Output | 8 gpm at 1800 psi (46 lpm x 10,345 kPa) |
Hydraulic Remote Controls | 2 Double-Acting Control Valves with Quick Coupler Outlets |
Tractor Weight | Must be of equal or greater weight than that of a 2100 BALEBUSTER and 1 Bale |
