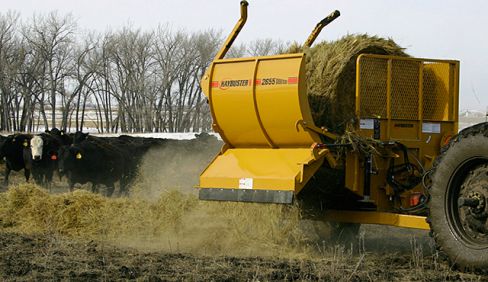

Bale Processors 2655 Balebuster - old
Features
TWO STAGE BALE LOADER
The 2655 speeds up the loading process by allowing each bale to be lifted separately without disturbing the other bales. The bale loader also carries a second bale, to increase productivity.
Specifications
| WEIGHT | |
| Total | 4700 lbs. (2132 kg) |
| Tongue (Bale loader fully raised) | 1300 lbs. (589.7 kg) |
| TRANSPORT DIMENSIONS (Bale loader fully raised, deflector folded) | |
| Width | 8 ft 4 in (2.52 m) |
| Length | 14 ft 11 in (4.55 m) |
| Height | 11 ft (3.35 m) |
| WORKING DIMENSIONS (With 1 bale, deflector in spread position) | |
| Width | 10 ft 10 in (3.31 m) |
| Length | 14 ft 11 in (4.55 m) |
| Height | 11 ft (3.35 m) |
| WORKING DIMENSIONS (With 2 bales, deflector in spread position) | |
| Width | 10 ft 10 in (3.31 m) |
| Length | 19 ft 7 in (5.95 m) |
| Height | 11 ft (3.35 m) |
| CHASSIS FEATURES | |
| Towing Arrangement | Clevis type hitch. |
| Jack Capacity | 5000 lbs. (2273 kg) |
| Jack Travel | 10 in (25.4 cm) |
| Tires | 2) 12.5L x 15 - 8 Ply |
| Wheels | 2) 10 x 15 - 6 Bolt, Drop Center |
| Bearing Type | Tapered Roller |
| BALE LOADER | |
| Type | Integral 2 Stage, Twin Boom Arms |
| Bale Tines | Tubular Steel, 10° Float, 4 Position Width |
| Adjustable Hydraulic Cylinder | 4-1/2 in x 24 in (11.43 cm x 60.96 cm ), Double-Acting |
| BALE CONVEYOR | |
| Type | 3 Roller Chains with Bolt-On Cross Slat |
| Drive | Hydraulic Orbital Motor with Adjustable Flow Control |
| BALE SHREDDER CHAMBER | |
| Max. Bale Size | 6 ft. long x 6-½ ft. dia. (1.83 m x 1.98 m) |
| Max. Bale Weight each | 2200 lbs. (1000 kg) |
| Rotor Length | 78 in. (1.98 m) |
| Rotor Diameter (Flails extended) | 25 in. (63.5 cm) |
| Rotor Bearing | Ball, 1-3/4 in. (4.44 cm) |
| Number of Flails | 40 |
| Rotor Speed | 1300 RPM |
| Flail type | Heavy Duty, 7/16 in. (11.11 mm) thick, 3 lbs. (1.36 kg), Heat Treated Spring Steel, Swinging |
| Number of Stripper Channels | 3 |
| Number of Slug Bars | 9 |
| Slug Bar | Single point, 5 Adjustment Settings through a 180 Degree Range (optional hydraulic adjustment) |
| Delivery | Right Hand Discharge |
| Deflector | 6 Adjustment Settings through a 120 Degree Range |
| Max. Horizontal Spread | Straw, up to 50 ft. (15.24 m) |
| OPERATOR CONTROLS | |
| Loader | 1 Tractor Double-Acting Hydraulic Valve |
| Bale Conveyor | 1 Tractor Double-Acting Hydraulic Valve |
| Bale Conveyor Speed | Conveyor Speed Control Valve |
| Slug Bar | Hand Lever with 5 Settings (optional hydraulic adjustment) |
| Deflector | Hand Lever with 6 Settings (optional hydraulic adjustment) |
| REQUIREMENTS FOR OPERATION | |
| PTO Horsepower Required | 65hp (48.5kw) to 155hp (115.6kw) |
| PTO Type | 1000 RPM, 1-3/8 in. dia. PTO Shaft with 21 Splines choice of Constant Velocity or Standard PTO |
| Min. Tractor Hydraulic Output | 8 gpm at 1500 psi (46 lpm x 10,345 kPa) |
| Tractor Hydraulic Controls | 2 Double-Acting Control Valves with Quick Coupler Outlets |
| Tractor Weight | Must be of equal or greater weight than that of a 2655 with 2 bales |
