Backhoes KB2475
Overview:

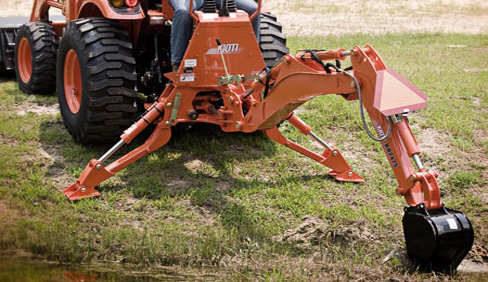

KIOTI backhoes deliver trenching up to 94” deep with a bucket dig force of up to 3,748 pounds. The backhoes feature sub-frame mounting, self-contained hydraulics, two-lever hydraulic controls, hydraulic stabilizers, transport lock and a variety of buckets.
Features
Fits KIOTI CK27, CK30, CK35, DK40SE, DK45SE, DK50SE, & DS3510 tractors.
Specifications may vary depending on tractor model and are subject to change without notification. Tractors must be equipped with ROPS and seat belt that will provide greater safety.
- Subframe mounted.
- Self-contained hydraulics (not available for all applications).
- Factory assembled.
- Responsive two-lever hydraulic control with exceptional feathering characteristics.
- Standard buckets: 9", 12", 16", 18", 24" and 36" wide ditch and grave buckets.
- All buckets have replaceable teeth.
- Extra heavy-duty buckets.
- Entire backhoe except for subframe is quick-detached from tractor.
Specifications
| Digging Depth | 89.7" |
| Reach (From center of Swing Pivot) | 125.1" |
| Loading Height (Bucket at 60 degrees) | 72.4" |
| Swing Arc | 180° |
| Transport Height (Maximum) | 83.5" |
| Transport Overhang | 49.0" |
| Bucket Rotation | 180° |
| Stabilizer Spread (Down Position) | 68.7" |
| Stabilizer Spread (Up Position) | 46.4" |
| Shipping Weight (Less Bucket) | 1052 lbs |
| Bucket Digging Force | 2,817.5 lbs |
| Dipperstick Digging Force | 2,105 lbs |
| Operating Pressure | 2,466 psi |
