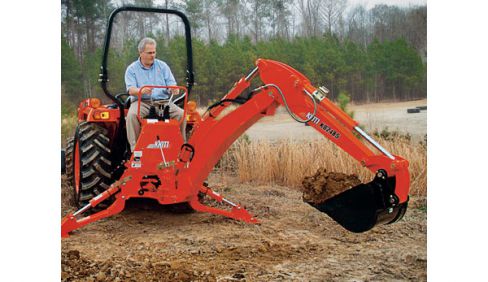

Call UsKioti KB2485
Backhoes KB2485
Overview:
Fits KIOTI DK10 Series (DK4510/5010/5510), NS Series (NS4710/NS4710 HST/NS5310 HST/NS6010/NS6010 HST), NX4510, NX5010, NX5510, NX6010, RX6620 tractors.
Specifications may vary depending on tractor model and are subject to change without notification. Tractors must be equipped with ROPS and seat belt that will provide greater safety.
Features
- Subframe mounted.
- Self-contained hydraulics (not available for all applications).
- Factory assembled.
- Responsive two-lever hydraulic control with exceptional feathering characteristics.
- Anti-drop load-checks.
- Standard buckets: 12", 16", 18", 24" and 36" wide ditch and grave buckets.
- All buckets have replaceable teeth.
- Extra heavy-duty buckets.
- Entire backhoe except for subframe is quick-detached from tractor.
Specifications
| Digging Depth | 94.4" |
| Reach (From center of Swing Pivot) | 136.1" |
| Loading Height (Bucket at 60 degrees) | 80.3" |
| Swing Arc | 180° |
| Transport Height (Maximum) | 92.9" |
| Transport Overhang | 50.4" |
| Bucket Rotation | 180° |
| Stabilizer Spread (Down Position) | 68.7" |
| Stabilizer Spread (Up Position) | 46.4" |
| Shipping Weight (Less Bucket) | 1091 lbs |
| Bucket Digging Force | 3,748 lbs |
| Dipperstick Digging Force | 2,205 lbs |
| Operating Pressure | 2,466 psi |
