Call UsKioti SB2410 / NOT AVAILABLE

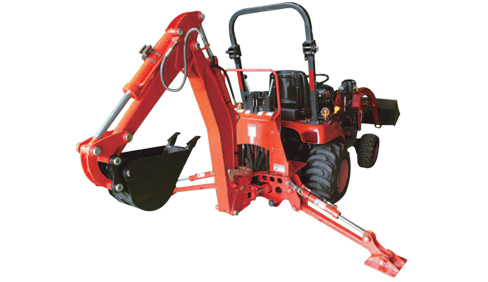

Backhoes SB2410
Overview:
KIOTI backhoes deliver trenching up to 94” deep with a bucket dig force of up to 3,748 pounds. The backhoes feature sub-frame mounting, self-contained hydraulics, two-lever hydraulic controls, hydraulic stabilizers, transport lock and a variety of buckets.
Features
Fits the KIOTI CS2410 Sub Compact Tractor.
- Four point mounting frame.
- Factory assembled.
- Responsive two-lever hydraulic control with exceptional feathering characteristics.
- Anti-drop load-checks.
- Standard buckets: 9", 12", and16” wide ditch bucket.
- Entire backhoe except for mounting frame is quick-detached from tractor.
- All buckets have replaceable teeth.
Specifications
| Digging Depth (two foot flat bottom) | 84 |
| Reach (From center line of Swing Pivot) | 113.9 |
| Loading Height (Bucket at 60°) | 52.2 |
| Maximum Leveling Angle | 8° |
| Swing Arc | 150° |
| Transport Height (Maximum) | 70.5 |
| Transport Overhang | 48.8 |
| Bucket Rotation | 163° |
| Stabilizer Spread (Down Position) | 87.7 |
| Stabilizer Spread (Up Position) | 55.7 |
| Angle of Departure | 14° |
| Shipping Weight (Less bucket) | 657 lbs. |
| Bucket Digging Force | 2,096 lbs. |
| Dipperstick Digging Force | 1,159 lbs. |
| Operating Pressure | 1,885 psi (130bar) |
