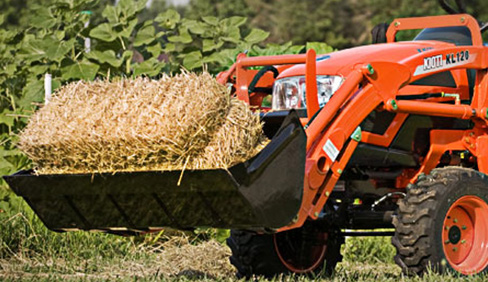

Front End Loaders KL120
Features
Fits the KIOTI CK20S Tractor.
Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment, and are subject to change without notification.
- Arched low profile maximizes operator's visibility and corresponds perfectly with the unique hood style.
- Entire loader (except mounting) can be quickly detached from tractor.
- A built-in parking stand on the front-end loader provides quick and easy connection.
- Color complements KIOTI CK20S tractor.
- Mid-mount style frame for engine accessibility.
Specifications
| Maximum Lift Height | 88" |
| Clearance w/ Attachment Level | 81" |
| Clearance w/ Attachment Dumped | 69.13" |
| Reach at Maximum Height | 19.25" |
| Maximum Dump Angle | 45° |
| Reach w/ Attachment on Ground | 54.37" |
| Maximum Rollback Angle | 35° |
| Digging Depth Below Grade | 2.87" |
| Overall Height in Carry Position | 41.46" |
| Depth of Attachment (to back of inner shell) | 17.71" |
| Height of Attachment | 18.50" |
| Depth of Attachment (to pivot pin) | 19.96" |
| Bucket Size | 50" |
| Rated Bucket Capacity | 5.56 cu.ft. |
| Heaped Bucket Capacity | 7.76 cu.ft. |
| Ballast Box attached to 3-Point | 600 lbs |
| Relief Valve Setting (Loader Control Valve) | 2,000 psi |
| Rated Flow (Tractor System) | 7.66 GPM |
| Approximate Weight with Bucket | 650 lbs |
| Bucket Size Used for Specification | 50" |
| Lift Capacity to Full Height at Pivot Pins | 1,074 lbs |
| Breakout Force at Pivot Pin | 1,515 lbs |
| Lift Cylinders | 1.77"x21.65" |
| Bucket Cylinder | 1.77"x23.19" |
| Raise Boom (seconds) | 3 |
| Lower Boom (seconds) | 2.4 |
| Dump Bucket (seconds) | 3 |
| Retract Bucket (seconds) | 2.9 |
