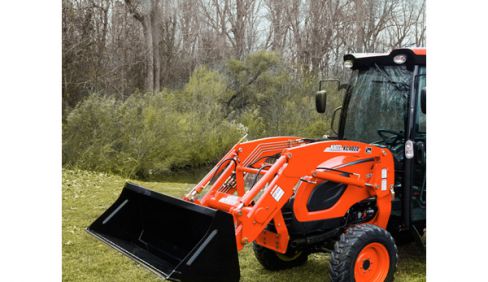

Front End Loaders KL4020
Overview:
Fits the CK10SE Series Models. (CK3510SE HC/CK4010SE HC)
The KIOTI KL4020 front end loader is specifically designed for the CK10SE Series tractors, providing efficient performance with single lever joystick control. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and d... + Read More
Features
- Low profile design maximizes operator's visibility.
- Designed to be quickly and easily attached and detached.
- A built-in parking stand on the front end loader provides quick and easy connection.
- Mid-mount style frame for engine accessibility.
- Bucket level indicator is standard.
- Color complements KIOTI tractor.
Specifications
| Maximum Lift Height to pivot pin | 98.4 in. (2,500 mm) |
| Clearance w/ Attachment Level | 88 in. (2,234 mm) |
| Clearance w/ Attachment Dumped (45º) | 74 in. (1,864 mm) |
| Reach at Maximum Height | 11.3 in. (286 mm) |
| Maximum Dump Angle | 48º |
| Reach w/ Attachment on Ground | 63.4 in. (1,610 mm) |
| Maximum Rollback Angle | 28.5º |
| Digging Depth Below Grade | 4.8 in. (122 mm) |
| Overall Height in Carry Position | 53.1 in. (1,349 mm) |
| Lift Capacity to Full Height at Pivot Pins | 1,930 lbs. (875 kg) |
| Breakout Force at Pivot Pins | 3,473 lbs. (1,575 kg) |
| Relief Valve Setting (Loader Control Valve) | 2,567 psi |
| Rated Flow (Tractor Hydraulic System) | 7.1 gpm |
| Bucket Size | 60 in. / 66 in. |
| Weight (with Bucket) | 937-950 lbs. (425-431 kg) |
| Depth of Attachment (to back of inner shell) | 19.1 in. (485 mm) |
| Height of Attachment | 19.7 in. (501 mm) |
| Length of Attachment (to pivot pin) | 24.3 in. (616 mm) |
| Raise Boom (2,600 rpm) | 5.3 seconds |
| Lower Boom (2,600 rpm) | 3.7 seconds |
| Dump Bucket (2,600 rpm) | 3.7 seconds |
| Retract Bucket (2,600 rpm) | 2.7 seconds |
