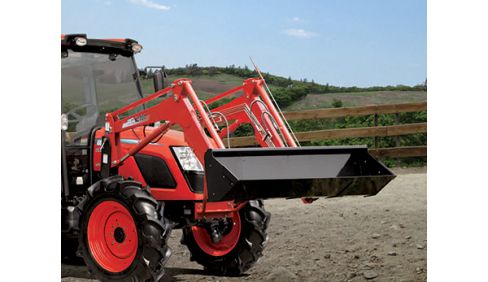

Front End Loaders KL7320
Overview:
Fits the RX6620/7320 models.
The KIOTI KL7320 front end loader is specifically designed for the RX6620/7320 model tractors, providing efficient performance with single lever joystick control. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loader... + Read More
Features
- Low profile design maximizes operator's visibility
- Designed to be quickly and easily attached and detached
- A built-in parking stand on the front-end loader provides quick and easy connection
- Mid-mount style frame for engine accessibility
- A bucket level indicator is standard
- Color compliments KIOTI Tractor
Specifications
| Maximum Lift Height to Pivot Pin | 133.9 in (3,401 mm) |
| Clearance w/ Attachment Level | 123.0 in (3,124 mm) |
| Clearance w/ Attachment Dumped | 102.3 in (2,598 mm) |
| Reach at Maximum Height | 20.4 in (518 mm) |
| Maximum Dump Angle | 47˚ |
| Reach w/ Bucket on Ground | 80.4 in (2,042 mm) |
| Maximum Rollback Angle | 54˚ |
| Digging Depth Below Grade | 6.5 in (165 mm) |
| Overall Height in Carry Position | 69.3 in (1,760 mm) |
| Bucket Depth (inner shell) | 23.3 in (592 mm) |
| Bucket Height | 22.9 in (582 mm) |
| Bucket Length (pivot pin) | 33.0 in (838 mm) |
| Lift Capacity to Full Height at Pivot Pins | 3,384 lbs. (1,535 kg) |
| Breakout Force at Pivot Pin | 5,359 lbs. (2,431 kg) |
| Lift Cylinders | I.D ø70mm X ROD 40mm |
| Bucket Cylinder | I.D ø70mm X ROD 35mm |
| Bucket Size | 82 in (2,083 mm) |
| Bucket Weight | 428 lbs. |
| Approx. Weight (without Bucket) | 1,468 lbs. |
| Bucket Capacity | 21.2 f³ |
| Raise Boom (seconds) | 6.3 @ (2,300 rpm) |
| Lower Boom (seconds) | 4.2 @ (2,300 rpm) |
| Dump Bucket (seconds) | 4.7 @ (2,300 rpm) |
| Retract Bucket (seconds) | 3.5 @ (2,300 rpm) |
| Rated Flow | 41.6 l/min |
| Relief Valve Setting | 185 kgf/cm² (66HP) / 195 kgf/cm² (73HP) |
