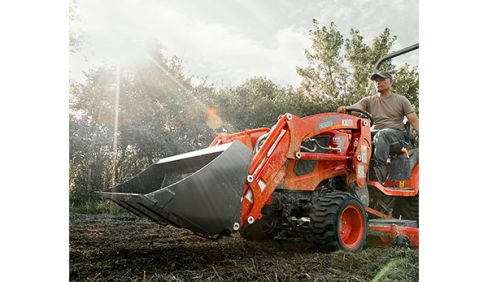

Front End Loaders SL2420
Overview:
Fits the KIOTI CS20 Series Sub-Compact tractors.
Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.
Features
- Arched low profile maximizes operator's visibility and is well matched with unique hood style.
- Entire loader (except mounting) can be quickly attached and detached from tractor.
- A built-in parking stand on the front end loader provides quick and easy connection.
- Mid-mount style frame for engine accessibility.
- Color complements KIOTI tractor.
Specifications
| Maximum Lift Height | 73.7" (1,872 mm) |
| Clearance w/ Attachment Level | 68.1" (1,730 mm) |
| Clearance w/ Attachment Dumped | 54.8" (1,392 mm) |
| Reach at Maximum Height | 29.7" (755 mm) |
| Maximum Dump Angle | 38° |
| Reach w/ Attachment on Ground | 52.8" (1,342 mm) |
| Maximum Rollback Angle | 27° |
| Digging Depth Below Grade | 5.1" (130 mm) |
| Overall Height in Carry Position | 34.1" (867 mm) |
| Depth of Attachment (to back of inner shell) | 18" (457.3 mm) |
| Height of Attachment | 19" (484 mm) |
| Length of Attachment (to pivot pin) | 22.4" (569.4 mm) |
| Bucket Size (QA) | 48" |
| Relief Valve Setting (Loader Control Valve) | 130~135 kg/cm2 |
| Rated Flow (Tractor System) | 4.9 gpm (18.7 L/min) |
| Lift Capacity to Full Height at Pivot Pins | 1062.3 lbs. (482 kg) |
| Breakout Force at Pivot Pin | 1,329 lbs. (603 kg) |
