| Product Description |

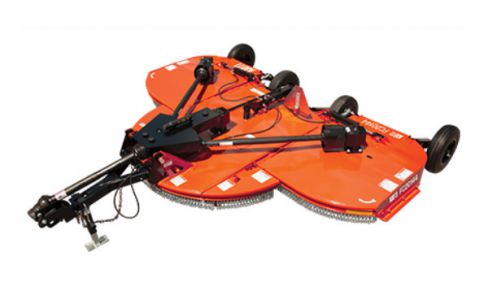

Medium-Duty 240" Flexwing Cutter |
| Tractor PTO (rpm) |
540 / 1,000 |
| Tractor PTO (hp) |
70-200 |
| Tractor Hitch |
Clevis |
| Cutting Width (ft.) |
20 |
| Cutting Swatch (in.) |
240 |
| Cutting Height Range (in.) |
15-Feb |
| Cutting Capacity (in.) |
2 |
| Transport Width (in.) |
123 |
| Blade Tip Speed 540 (fpm) |
15,450/ 16,300 |
| Deck Thickness (in.) |
0.135 |
| Side Frame Thickness (in.) |
0.25 |
| Deck Side Depth (in.) |
13.25 |
| Weight (tongue/total) |
2,400/6,510 |
| Blade Thickness (in.) |
0.5 |
| Blade Width (in.) |
4 |
| Blade Overlap (in.) |
6 |
| Flex Wing |
90° Up, 22° Down |
| Tires |
29" Used Aircraft |
| Suspension |
Standard Spring Suspension |
| Main Driveline |
Category 6 CV |
| Wing Driveline |
Category 4 |
| Cutting Area Shielding |
Standard Chain Shielding |
| Front and Rear Chains |
Standard |
| Overall Width x Length (in.) |
250 x 198 |
| Deck Type |
Smooth, Sloped |
| Hinges / Hinge Rod Diameter (in.) |
1 |
| Vertical Shaft Size (in.) |
2 |
| Splitter / Wing (hp) |
235 / 120 |
| Blade Type |
Quick-Change Blade Pins, Hi-Lift |
| Material Flow System |
Fully Baffled Deck |
| Stump Jumper Type |
Standard Round-Welded |
| Number of Gearcases |
4 |
