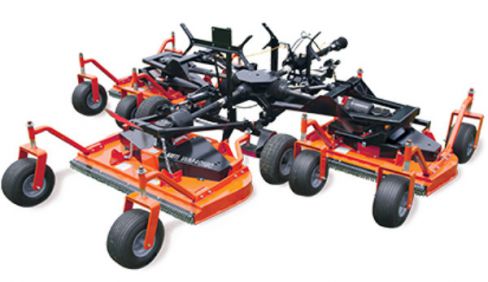

Flexwing Finish Mowers WM40180
Features
The new KIOTI Flexwing Finish Mowers offer a cutting width of up to 17 feet, making them perfect for working in the field.
Specifications
| Model | WM40180 |
| Product Description | Heavy-Duty 180" Flexwing Finish Mower |
| Tractor PTO Range (hp) | 35-80 |
| Input Driveline (Constant Velocity) | Category 4 |
| Wing Drivelines | Category 3 |
| Cutting Width (ft.) | 15 |
| Cutting Height Range (in.) | 1 - 5 |
| Wing Deck Cutting Width (in.) | 60 |
| Deck Overlap | 6 |
| Overall Width (in.) | 182 |
| Transport Width (in.) | 100 |
| Maximum Overall Length (in.) | 183 |
| Transport Length (in.) | 161 |
| Splitter Gearbox (hp) | 100 |
| Blade Tip Speed (fpm) | 18,000 |
| Drive Type | Gearbox Over V-Belt |
| Transport Tires (in.) (Two tires each) | 20.5 x 8-10 |
| Tires | Highway Transport |
| Caster Wheel Bearings | Tapered Roller Bearings |
| Caster Wheels (in.) (10 each) | 18 X 9.5-8 Pneumatic |
| Deck Thickness | 8 Gauge |
| Wing Deck Lift Cylinders (in.) | 3.5 X 10 Single Acting |
| Center Deck Lift Cylinders (in.) | 3 X 8 Single Acting |
| Trailer Frame Construction (in.) | .25 Wall Tubing |
| Hitch Adjustment | Floating Clevis, Multi-Position |
| Blade Spindles Bearings | Greasable Tapered Roller |
| Blade Dimensions (in.) (9 each) | .25 x 2.5 |
| Blade Spindles (9 each) | Cast Iron |
| Cutting Height Adjustment | Spacer On Caster |
| Belts | B-Section Kevlar® |
| Belt Adjustment | Spring-Loaded Idler |
| Chain Shielding | Standard |
| Approxiamte Weight (lb.) | 3,325 |
