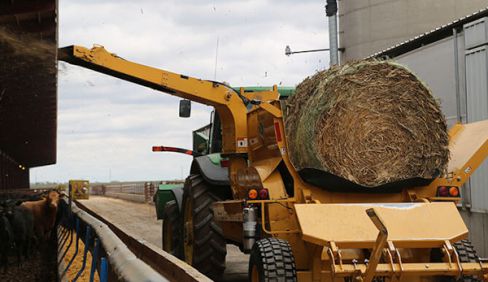

Vermeer BPX9000

Double tap to zoom



  • Operate easily with right-side discharge and improved visibility into the tub. Slat and chain bed reduces the need for reversing the bale rotation.
  • Reduce maintenance with a self-cleaning feature. Offset rotor has a lower door for easy access for ease of net and twine removal, and the slat and chain bed with a split shaft makes maintenance simple.
  • Produce high quality feed with consistent material flow and cut length, while reducing hay waste by blowing away dust and mold from stored bales.
  • T-style frame bolted high on the tub for enhanced durability and no major welds at high stress points.
  • Versatile processing with the optional large square bale kit and ability to carry two bales.
  • Optional scale kit allows operators to know how much they are feeding from each bale.
  • See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.


Dimensions and Weights

Length 15 ' 4.6 m
Height 8.5 ' 2.6 m
Width - Transport 8.2 ' 2.5 m
Width - Operation 11.2 ' 3.4 m
Weight 5060 lbs 2295.2 kg
Drawbar Weight 1460 lbs 662.2 kg

Tractor Requirements

Horsepower Required 85 hp 63.4 kw
PTO speed 1000 rpm
Hydraulics type 3- Double Acting
Hydraulic Pressure 2000 psi 137.9 bar
Hydraulic flow rate 8 gpm 30.3 L/min

Standard Details

Bale rotation 3 Roller Chains with Bolt-On Cross Slat
Bale size capacity Two Bales, 6' x 5'
Bale weight capacity 2500 lbs 1134 kg
Discharge Direction Right Hand
Flail description 7/16" x 5 9/16" tempered spring
Flail Drum Diameter 26.8 " 67.9 cm
Flail Drum Length 78 " 198.1 cm
Flail Drum Speed 1000 rpm
Flail Quantity 30
Hitch Jack 5000 lb. (2267.96kg)
Slug bar quantity 7
Slug bar adjustment Hand Lever with 5 settings
Tire Size - Standard 14L x 16.1FL
Torque Protection - Driveline Shear bolt

Optional Features

Flotation Tires 16.5L- 16.1SL 6 SOFTRAC II
Square bale kit Yes
