Vermeer SBW4000

Double tap to zoom

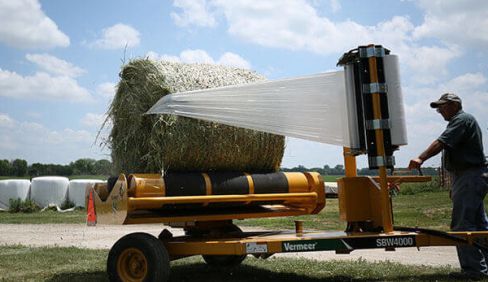

  • Ideal when operators want to wrap their bales close to where they will be storing them. The SBW4000 operates statically while another tractor or skid steer loads the bale onto the table for wrapping.
  • Manual controls on the machine allow the operator to control functions of the wrapper with two main levers.
  • Adjustable bobbins allow the producer to adjust the wrapper according to the size of the bale. This keeps the bale centered on the table for ideal plastic film cover.



Transport Length 12.1 ' 3.7 m
Transport Height 7.3 ' 2.2 m
Transport Width 6.3 ' 1.9 m


Engine Tractor requirements: 25 hp (19 kW)
Alternator 12 VDC optional
Hydraulic Type 1 – Double acting
Hydraulic Flow Rate - Minimum 4 gpm (15.1 lpm)
Tire size 20.5 x 8 x 10
Hitch Drawbar
Film Stretcher 55 percent
Bale Weight - Maximum 2500 lbs 1134 kg
Bale Size - Maximum 5 ft x 4 ft (1.5 m x 1.2 m)
