Call UsVermeer M7040 3-Point Disc Mower / NOT AVAILABLE
Disc Mowers M7040 3-Point Disc Mower
Overview:

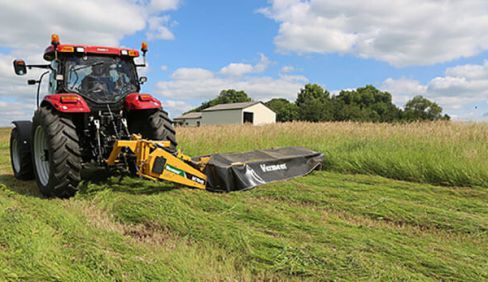

The Vermeer M7040 disc mower delivers high performance with minimal maintenance. Exclusive bi-shaft design provides each disc with its own set of gears, bearings and lubricants – and the gears stay in the grease, even when mowing at angles. Extra wide skid shoes eliminate pinch points to protect against rock damage and... + Read More
Features
Tapered, low-profile cutter bar
Cut close and clean with a tapered, low-profile cutter bar that produces excellent, streak-free results.
Outer bar support
Mow up against fences because the outer bar support allows closer cutting.
Quick-Clip blade retention system
Replace blades in seconds using the exclusive Quick-Clip® blade retention system.
Specifications
| Model | M7040 |
| Dimensions and Weights - Approximate | |
| Transport Width | 94 " (238.8 cm) |
| Transport Length | 78 " (198.1 cm) |
| Tractor Requirements | |
| Hitch | 3-pt., Category II |
| Drive | 540 rpm PTO |
| Drawbar Horsepower | 70 hp (52.2 kw) |
| Hydraulic requirements | 1 single acting valve |
| Flow Rate | 6 gpm (22.7 L/min) |
| Hydraulic Pressure | 2000 psi (137.9 bar) |
| Cutterbar | |
| Cutting Width | 110 " (279.4 cm) |
| Number of Discs | 7 |
| Disc Type | Quick -Clip |
| Number of Knives | 14 |
| Angle Adjustment | Top-link on 3-pt. |
| Drive | PTO to V-belt to gearbox/cutterbed |
