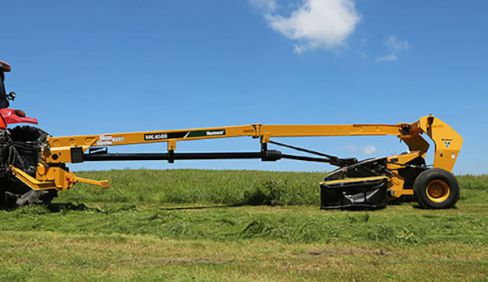

Mower Conditioners MC4500
Overview:
The mower conditioner line from Vermeer combines productivity, flexibility and convenience into one powerful package. Practical innovations, including the Quick-Clip® blade retention system and Quick-Change™ shear ring, make the tasks of changing blades or repairing a sheared disc quick and simple. When it's time to mo... + Read More
Features
Q3 CUTTER BAR
The Q3® cutter bar, a modular shaft-driven cutter bar, offers greater fuel efficiency with minimal gear-to-gear interface, requiring less horsepower than gear bed style cutter bars.
QUICK-CLIP BLADE RETENTION SYSTEM
The Quick-Clip blade retention system for quickly replacing or reversing blades, and the Quick-Change shear ring to protect your cutter bar from potentially damaging obstacles, provide convenient maintenance and repair.
NITROGEN-CHARGED ACCUMULATOR SUSPENSION SYSTEM
Nitrogen-charged accumulator suspension system provides a consistent weight on the cutter bar throughout the full range of motion, and can be easily customized by adjusting two needle valves.
ROLLER OR TINE CONDITIONER OPTIONS
Offered with either a roller or tine conditioner option, the MC4500 gives operators the ability to choose their preferred conditioning method. And with multiple swath adjustments, operators have control over their windrow formation – whether they want a narrow windrow or a wide swath.
SPRING-LOADED HOOD
A spring-loaded hood keeps the weight light enough for easy lifting, and magnets in the curtain keep it out of the way for convenient cutter bar access when maintenance is performed.
Specifications
| Dimensions and Weights | |
| Transport Height | 73 " (185.4 cm) |
| Transport Width - ends up | 15 ' (4.6 m) |
| Transport Width - ends down | 17 ' (5.2 m) |
| Transport Length | 29.3 ' (8.9 m) |
| Working Height | 73 " (185.4 cm) |
| Total Weight (Roller Conditioner) | 6700 lbs (3039.1 kg) |
| Total Weight (Tine Conditioner) | 6300 lbs (2857.6 kg) |
| Tongue Weight | 1700 lbs (771.1 kg) |
| Ground Clearance (Maximum) | 17 " (43.2 cm) |
| Tractor Requirements | |
| Tongue - swivel gearbox | 3-pt., Category II or III N (1000 rpm) |
| Drive - PTO | 1000 rpm |
| Horsepower Required | 105 hp (78.3 kw) |
| Hydraulic Type | 2-Double Acting |
| Hydraulic Pressure | 2200 psi (151.7 bar) |
| Hydraulic flow rate | 6 gpm (22.7 L/min) |
| Cab | Full Enclosed Cab |
| Cutterbar | |
| Cutting Width | 15.1 ' (4.6 m) |
| Cutting Height - minimum | 1 " (2.5 cm) |
| Cutting Height - maximum | 8 " (20.3 cm0 |
| Shear Protection | Quick-Change™ Shear Ring |
| Number of Discs | 10 |
| Disc Type | Quick-Clip® Blade Retention System |
| Disc Cut Diameter | 23.1 " (58.7 cm) |
| Disc Speed | 2700 rpm |
| Number of Blades | 20 |
| Angle Adjustment | Hydraulic Pitch Control |
| Skid Shoes | Single Skid Shoe - Full Coverage |
| Roller Conditioner | |
| Type | Intermeshing Steel Rollers |
| Conditioner Drive | 3 - 5V belt |
| Conditioner Width | 118 " (299.7 cm) |
| Roller Diameter | 9.3 " (23.6 cm) |
| Roller Speed | 740 rpm |
| Windrow Width - Minimum | 62 " (157.5 cm) |
| Windrow Width - Maximum | 112 " (284.5 cm) |
| Tine Conditioner | |
| Type | V-tine |
| Conditioner Drive | 3 - 5V belt |
| Conditioner Width | 118 " (299.7 cm) |
| Working Diameter | 22 " (55.9 cm) |
| Tine Speed Low | 800 rpm |
| Tine Speed High | 1000 rpm |
| Windrow Width - Minimum | 62 " (157.5 cm) |
| Windrow Width - Maximum | 115 " (292.1 cm) |
| Standard Features | |
| Tires | 30 X 13.5-15 |
| Mower Suspension | Hydraulic - Nitrogen Charged Accumulator |
| Safety Equipment | SMV Sign |
| Torque Protection | Friction/Over-Running Clutch |
| Warranty | 3-year Cutter Bar Warranty |
| Topping Cylinder | Standard |
| Optional Features | |
| Safety Chain | Yes |
| Stabilization chain | Yes |
| Pickup Tow Option | Yes |
| Platform | Yes |
| Tire - 33 X 15.5-16.5 | Yes |
