Call UsVermeer Rebel TR90 Tedder / NOT AVAILABLE
Tedders Rebel TR90 Tedder
Overview:

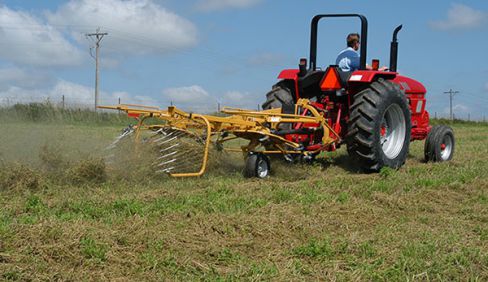

The Rebel TR90 Tedder is a compact tedder/rake combination made for small operations or part-time farmers. Easy to operate, easy to set up. Select from one of five settings on the rotor wheels to change the spreading angle or tedding height. To switch from tedding to windrowing, just adjust each tine and fold down the raking baskets.
Features
SPRING STEEL TINES
Achieve a uniform windrow thanks to spring steel tines outfitted with nylon tips.
3-POINT MOUNTING SYSTEM
Maneuver easily around your property because the Rebel TR90’s 3-point Mounting System allows quick, tight turns.
NARROW TRANSPORT WIDTH
Take it to the next field by rotating and locking the headstock directly behind the tractor for narrow transport width.
Specifications
| STANDARD FEATURES | |
| SMV Sign | Yes |
| TRACTOR REQUIREMENTS | |
| PTO Horsepower Requirements | 25 hp |
| Hitch | Category II 3-point hitch |
| Drive - PTO | 540 rpm |
| DIMENSIONS AND WEIGHTS - APPROXIMATE | |
| Tedding width | 9.8 ft |
| Transport Height | 8.5 ft |
| Transport Width | 8.3 ft |
| Transport Length | 8.5 ft |
| Weight | 730 lbs |
| Tire size | 16 x 6.5-8 |
| Basket Angle Range | 7-17° |
| Basket Angle Adjustment Style | Infinitely adjustable via top link on tractor |
| Number of Baskets | 2 |
| Tine Arms per Basket | 8 |
| Type of Tine | Hook tine |
| Operating Speed (Maximum) | 9.3 mph |
| OPTIONS | |
| Warranty | 3-year hook tine warranty |
