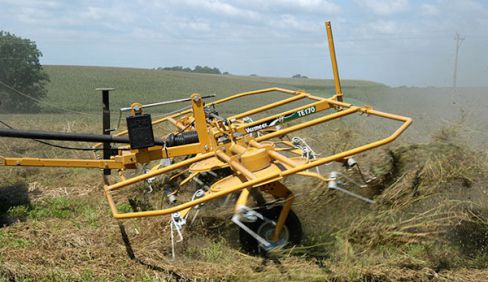

Vermeer TE170 Tedder

Double tap to zoom



  • Adjust rotor angles without tools to match crop and field conditions, using the wheel settings under the rotors.
  • Work along fences and field edges by setting the tines to the inner position to feed the crop directly behind the machine.
  • Keep working, not wrapping thanks to the Vermeer anti-wrap plates and curved wheel supports that keep the crop from wrapping around the wheels.
  • Protect your investment. Vermeer “hook” tines are the only ones in the industry with a 3-year limited warranty.
  • See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.


Dimensions and Weights - Approximate

Transport Height 102 " 259.1 cm
Transport Width 108 " 274.3 cm
Weight 1410 lbs 639.6 kg
Tire Size - Transport 16 x 6.5-8 - 6ply

Tractor Requirements

Horsepower Requirements 34 hp 25.4 kw
Hydraulic Pressure 2100 psi 144.8 bar
Hook up Standard Drawbar Clevis


Hydraulic Tilt Kit Replaces manual crank for basket tilt
