Call UsVermeer TE250 Tedder / NOT AVAILABLE

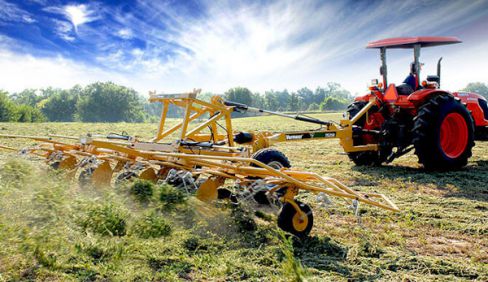

Tedders TE250 Tedder
Overview:
With extra maneuverability that lets you make tight turns, the TE250 Tedder features the exclusive Vermeer hooked double tines that flip your crop instead of blending it for faster dry-down. Get a full 25'/7.62 m of tedding action along the stable double-framed tedder arms. Pivot points along the driveline allow the te... + Read More
Features
EASY TO TRANSPORT
Easy and simple to transport, with the transport tires and cart.
ADJUSTABLE ROTOR ANGLES
Adjust rotor angles without tools to match crop and field conditions, using the wheel settings under the rotors.
ADJUSTABLE TINES
Work along fences and field edges by setting the tines to the inner position to feed the crop directly behind the machine.
ANTI-WRAP PLATES
Keep working, not wrapping thanks to the Vermeer anti-wrap plates and curved wheel supports that keep the crop from wrapping around the wheels.
LIMITED WARRANTY
Protect your investment. Vermeer “hook” tines are the only ones in the industry with a 3-year limited warranty.
Specifications
| STANDARD FEATURES | |
| Safety Equipment | SMV sign, tail lights |
| SMV Sign | Yes |
| Tail Lights | Yes |
| TRACTOR REQUIREMENTS | |
| PTO Horsepower Requirement | 47 hp |
| Hydraulic requirements | 1 double-acting |
| Hydraulic Pressure | 2200 psi |
| Hitch | Drawbar |
| Drive - PTO | 540 rpm |
| DIMENSIONS AND WEIGHTS - APPROXIMATE | |
| Tedding width | 25 ft |
| Transport Height | 9 ft |
| Transport Width | 8 ft |
| Transport Length | 2 ft |
| Weight | 3200 lbs |
| Tire size | 16 x 6.5-8 |
| Tire Size - Transport | 10.0 x 75-15.3 |
| Basket Angle Range | 10-17° |
| Basket Angle Adjustment Style | Adjustment StyleAdjustable by changing wheel frame/main frame mount |
| Number of Baskets | 6 |
| Tine Arms per Basket | 6 |
| Type of Tine | Hook tine |
| Torque Protection - Driveline | Radial pin clutch |
| Operating Speed (Maximum) | 9.3 mph |
| OPTIONS | |
| Safety ChainYes | Yes |
| Warranty | 3-year hook tine warranty |
