Call UsVermeer TE490 Tedder / NOT AVAILABLE

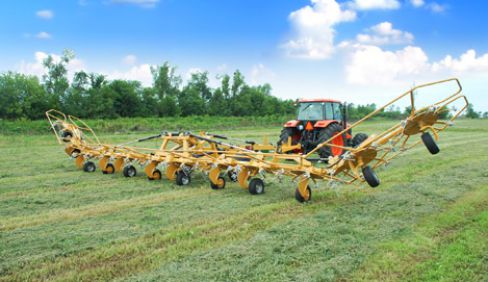

Tedders TE490 Tedder
Overview:
The giant TE490 Tedder covers up to 49' (14.9 m) in one pass. It’s simply the largest, most efficient way to ted your crops for maximum forage quality. The hook tine design gives you better grip of the crop, allowing you to decrease RPMs, minimize loss and disperse the crop thoroughly and more evenly – without contamin... + Read More
Features
- Special coiled hook-style tines produce “bottoms-up” tedding action for more consistent dry-down and longer tine life. All TE Series models come with a 3-year limited hook tine warranty.
- Rugged double frame construction and radial pin clutches offer more stability and better protection.
- Curved wheel supports and an anti-wrap plate combine to prevent downed crop material from wrapping around wheels.
- Adjust rotor heights and customize tedding action to various crops and conditions without using any tools.
- Go from transport to operating position in less than 45 seconds! No monitor is needed – just two remotes to fold and unfold the tedder.
- See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.
Specifications
Dimensions and Weights - Approximate
| Transport Height | 114 " | 289.6 cm |
| Transport Width | 117 " | 297.2 cm |
| Transport Length | 248 " | 629.9 cm |
| Weight | 7740 lbs | 3510.8 kg |
| Tire Size - Transport | 15.0 x 55-17 - 10ply |
Tractor Requirements
| Horsepower Requirements | 100 hp | 74.6 kw |
| Hydraulic Pressure | 2100 psi | 144.8 bar |
| Hook up | Drawbar, 1.25 " (3.175 cm) Pin diameter |
Standard Features
| Safety Equipment | SMV sign and tail lights |
